G.O.A.T Offroad

Bluetooth 8 Way Switch Panel

Precio habitual $379.00
/
Impuesto incluido. Los gastos de envío se calculan en la pantalla de pagos.

5 en stock

At G.O.A.T Offroad we are big fans of lights! And running lots of lights needs a high performance system to control them.

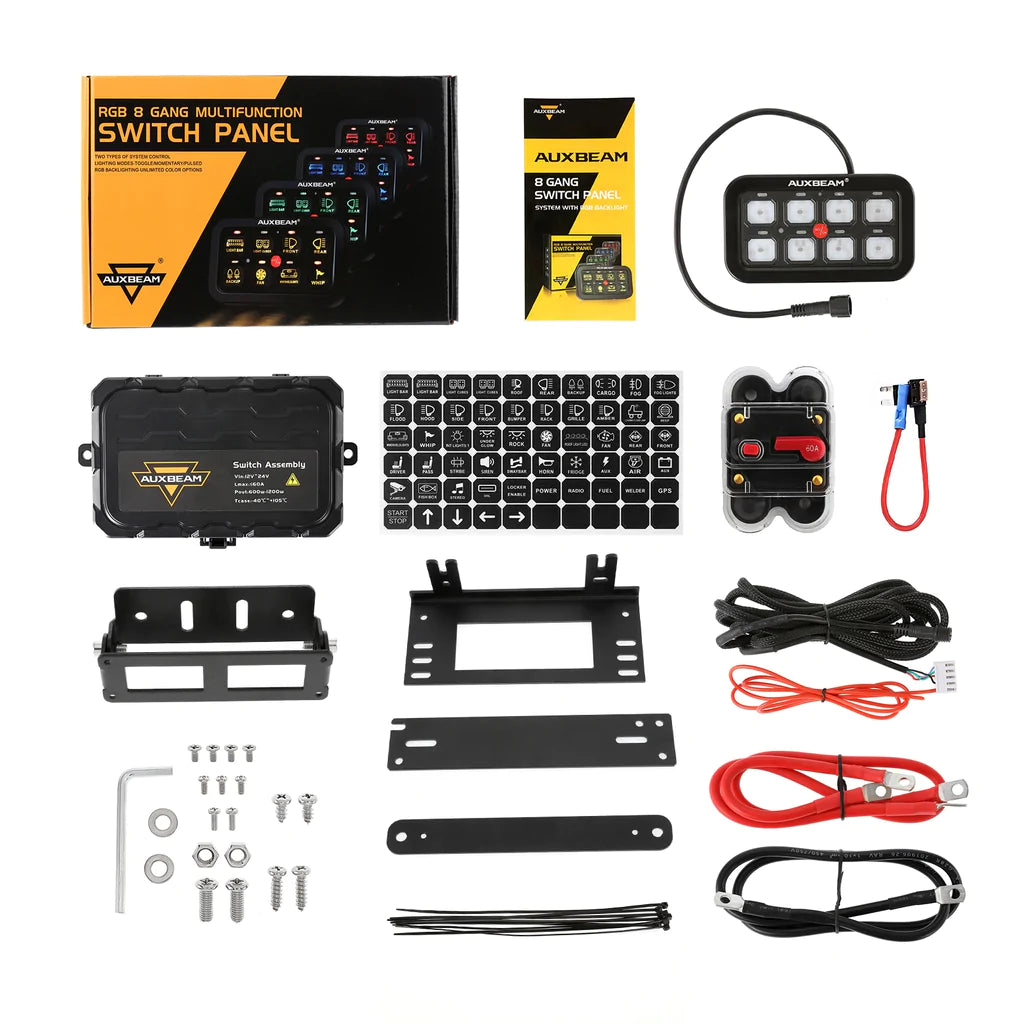

Normally that would mean a ton of wiring, relays, fuses, switches, and the labour required to make a safe and tidy install. But that's a thing of the past with the AUXBEAM AR800 switch panel and our optional G.O.A.T Offroad CAD designed mount.

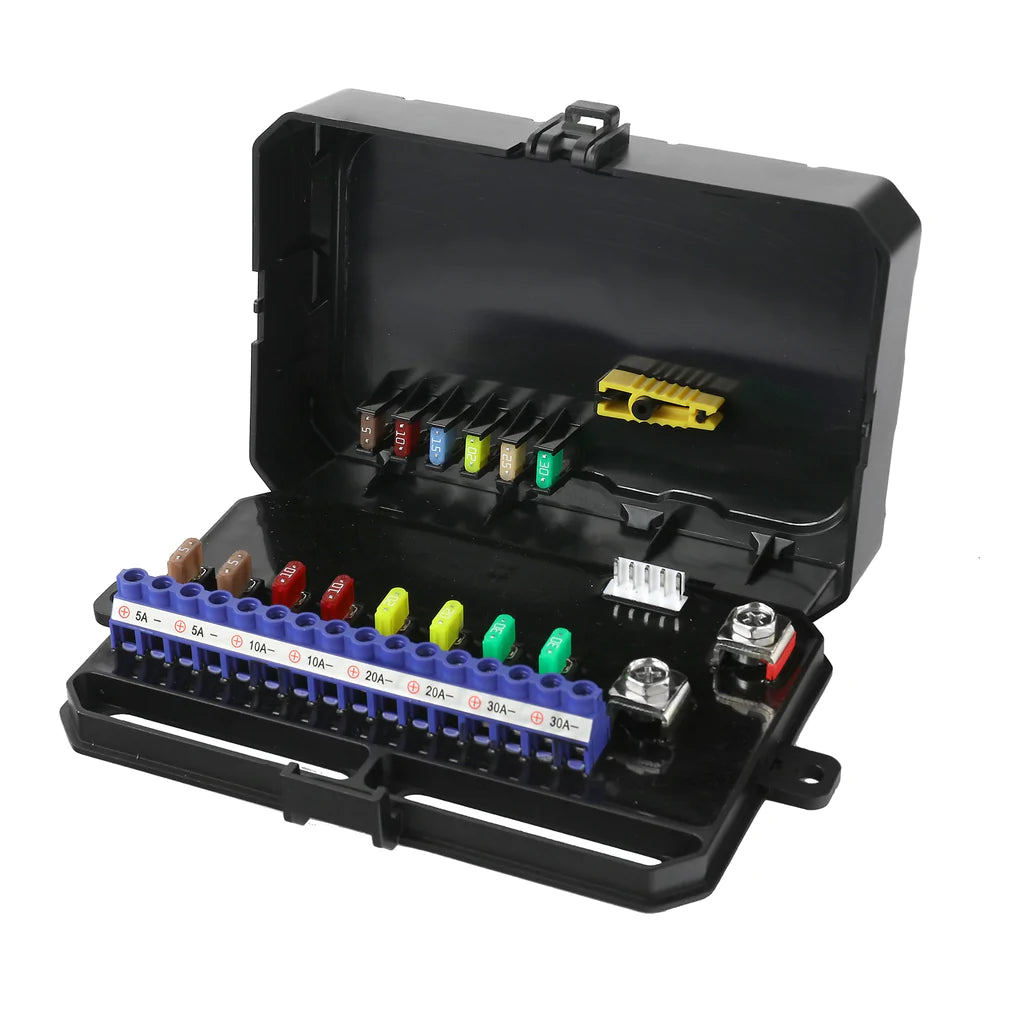

The centerpiece of the system is the combined solid state relay/fused outlets that allows you to easily connect up to 8 loads and control them with either a toggled/momentary/pulsed mode. This means you only need to connect the Positive and Negative supplies, plus tap into an accessory 12v and you're done.

The best part of this setup is the bluetooth control, easily done via the intuitive Auxbeam app. With the app you can:

  • Turn on and off your accessories from up to 20m away. Imagine sitting in your swag and able to turn the camp lights off!
  • Change the switch panel backlight colour, to perfectly match the factory dash colours
  • Change the button modes between toggle/momentary/pulsed
  • Create groups of switches that all turn on at the same time
  • Assign names to the switches

The switch system is capable of switching the below loads

  • 2x 30a
  • 2x 20a
  • 2x 10a
  • 2x 5a

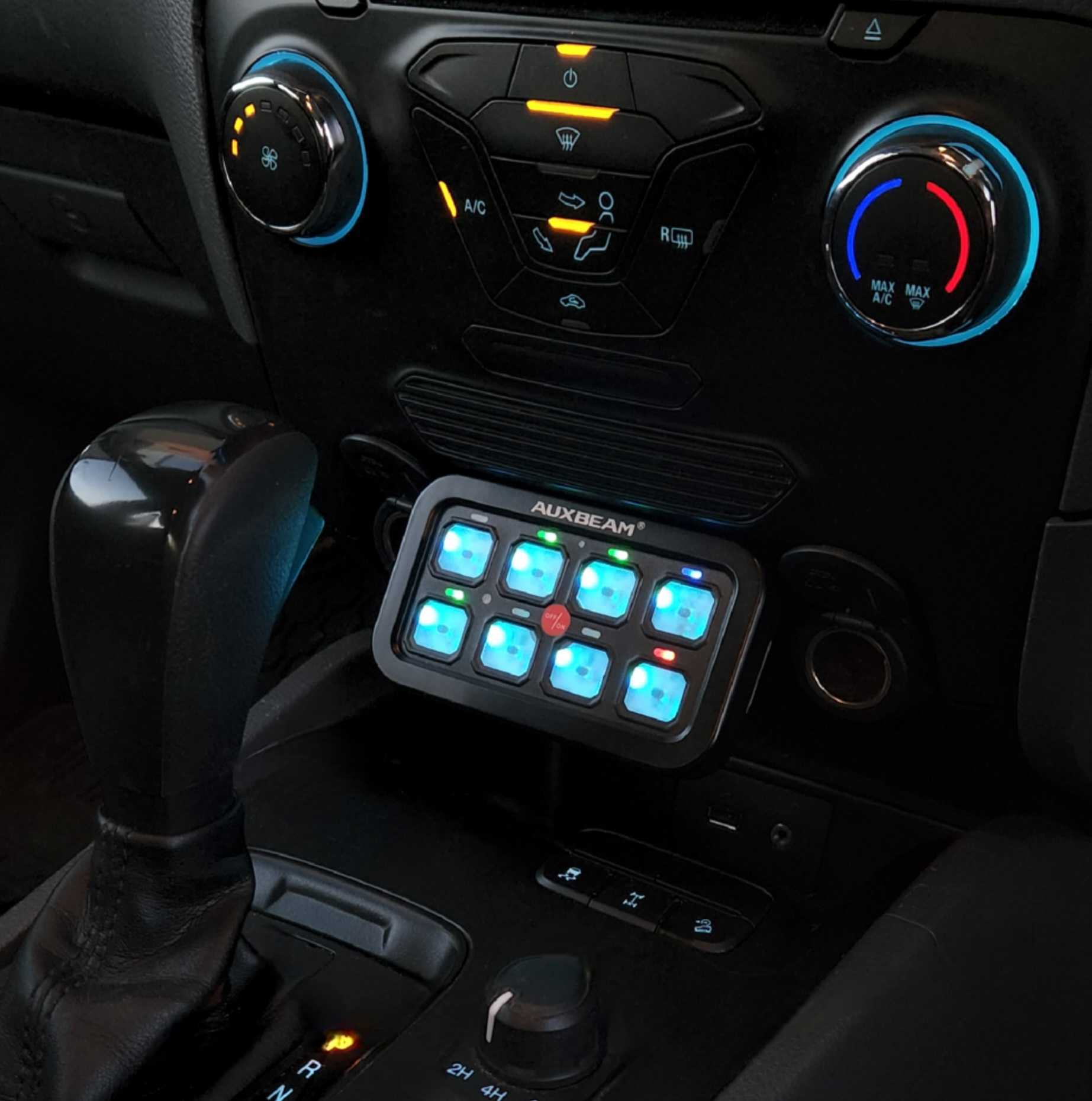

The optional mount we have designed is 3d printed and attaches to your lower fascia with no modification.

TO ENSURE A TIDY AND SAFE INSTALL, WE HIGHLY RECOMMEND GRABBING AN AWESOME RELAY MOUNT PLATE FROM OUR MATES AT MILSPEC DESIGNS. THEY ARE BOLT IN FIT TO ALL PX RANGERS AND SAFELY AND EASILY MOUNTS THE AUXBEAM RELAY UNIT IN YOUR ENGINE BAY.

  • 2015-2018 PX2 Ford Ranger - All Specs
  • 2018-2021.75 PX3 Ford Ranger - All Specs
  • 2018-2022 Ranger Raptor - All specs
  • 2015-2022 Everest - All specs
Download install instructions HERE
Did you know we can install this for you?

Book in now to have our experienced staff take care of your rig!

Located at 7/1037 Ballarat Rd, Ravenhall VIC 3023

Email us at info@goatoffroad.com.au to book it in.

BY APPOINTMENT ONLY
